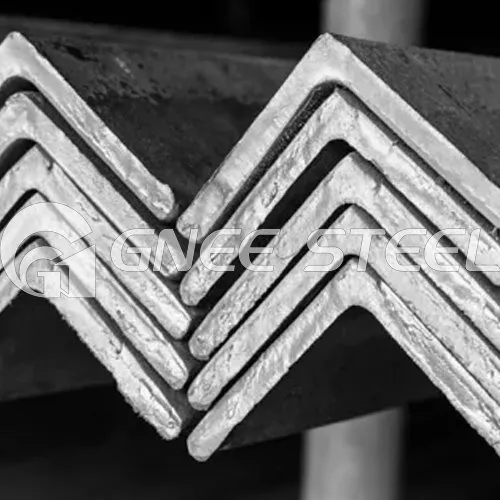

ST52-3 burchakli po‘lat bar Mahsulot tavsifi:
Element: ST52 burchakli po'lat.
Standart% 3a DIN 17100.
Texnologiya: issiq haddelenmiş.
Turi: teng va tengsiz.
Yuzaki: qora yoki galvanizli yoki oldindan bo'yash.
Uzunlik: 6 m, 9 m, 12 m yoki sizning so'rovingiz bo'yicha.
Teng burchak:
Hajmi: 20 × 20 mm dan 200 × 200 mm gacha.
Qalinligi: 3 dan 20 mm gacha.
Uzunlik: 6 m, 9 m, 12 m yoki sizning so'rovingiz bo'yicha.
Teng bo'lmagan burchak:
Hajmi: 30 × 20 mm dan 250 × 90 mm gacha.
Qalinligi: 3 dan 10 mm gacha.
Uzunlik: 6 m, 9 m, 12 m yoki sizning so'rovingiz bo'yicha.
DIN ST52-2 burchakli po'lat - yaxshi payvandlash
ST52 po'lat burchaktarkibida 0.23% uglerod va 355 MPa oqish quvvati payvandlanadigan va qoʻllab-quvvatlovchi qismlarga mos keladi. Kimyoviy tarkibi va mexanik xususiyatlariga ko'ra, u EN 10025-3 S355N ga o'xshaydi.
Ommabop ASTM A36 bilan solishtirganda, ST52 yuqori quvvatga ega va mukammal payvandlash qobiliyatiga ega. Bundan tashqari, kundalik hayotda va ombor, asbob-uskunalar va boshqalar kabi sanoat ilovalarida qo'llaniladi.
Eslatma: Garchi o'xshash xususiyatlarni baham ko'rsalar ham, ular bir oz farq qiladi. Bizga batafsil talablaringizni bildiring, eng mos po'lat navi aytiladi.
| Chelik darajasi | Uslublar | Uglerod, maksimal, % | Kremniy, % | Marganets, % | Fosfor, maksimal, % | Oltingugurt, maksimal, % |
|---|---|---|---|---|---|---|
| Oʻng qoʻl | Chelik burchaklar | 0.23 | <0.60 | <1.60 | 0.045 | 0.045 |
| Chelik darajasi | Uslublar | Kuchlanish kuchi, ksi [MPa] | Chiqish nuqtasi, min, ksi [MPa] | Cho'zilish, min, d5, % |
|---|---|---|---|---|
| Oʻng qoʻl | Chelik burchaklar | 75 - 92 [510 - 630] | 52 [355] | 21 |
ST52 teng po'lat burchak o'lchamlari:
| Element | Oyoq 1 (mm) | Oyoq 2 (mm) | Qalinligi (mm) | Og'irligi (kg/m) | Element | Oyoq 1 (mm) | Oyoq 2 (mm) | Qalinligi (mm) | Og'irligi (kg/m) |
|---|---|---|---|---|---|---|---|---|---|
| EST52001 | 20 | 20 | 3 | 0.889 | EST52045 | 80 | 80 | 7 | 8.525 |
| EST52002 | 20 | 20 | 4 | 1.145 | EST52046 | 80 | 80 | 8 | 9.658 |
| EST52003 | 25 | 25 | 3 | 1.124 | EST52047 | 80 | 80 | 10 | 11.874 |
| EST52004 | 25 | 25 | 4 | 1.459 | EST52048 | 90 | 90 | 6 | 8.35 |
| EST52005 | 30 | 30 | 3 | 1.373 | EST52049 | 90 | 90 | 7 | 9.656 |
| EST52006 | 30 | 30 | 4 | 1.786 | EST52050 | 90 | 90 | 8 | 10.946 |
| EST52007 | 35 | 35 | 3 | 1.578 | EST52051 | 90 | 90 | 10 | 13.476 |
| EST52008 | 35 | 35 | 4 | 2.072 | EST52052 | 90 | 90 | 12 | 15.94 |
| EST52009 | 35 | 35 | 5 | 2.551 | EST52053 | 100 | 100 | 6 | 9.366 |
| EST52010 | 40 | 40 | 3 | 1.852 | EST52054 | 100 | 100 | 7 | 10.83 |
| EST52011 | 40 | 40 | 4 | 2.422 | EST52055 | 100 | 100 | 8 | 10.276 |
| EST52012 | 40 | 40 | 5 | 1.976 | EST52056 | 100 | 100 | 10 | 15.12 |
| EST52013 | 44 | 44 | 3 | 2.002 | EST52057 | 100 | 100 | 12 | 17.898 |
| EST52014 | 44 | 44 | 4 | 2.638 | EST52058 | 100 | 100 | 14 | 20.611 |
| EST52015 | 38 | 38 | 3 | 1.719 | EST52059 | 100 | 100 | 16 | 23.257 |
| EST52016 | 38 | 38 | 4 | 2.261 | EST52060 | 110 | 110 | 7 | 11.928 |
| EST52017 | 48 | 48 | 3 | 2.19 | EST52061 | 110 | 110 | 8 | 13.532 |
| EST52018 | 48 | 48 | 4 | 2.889 | EST52062 | 110 | 110 | 10 | 16.69 |
| EST52019 | 48 | 48 | 5 | 3.572 | EST52063 | 110 | 110 | 12 | 19.782 |
| EST52020 | 50 | 50 | 3 | 2.332 | EST52064 | 110 | 110 | 14 | 22.809 |
| EST52021 | 50 | 50 | 4 | 3.059 | EST52065 | 125 | 125 | 8 | 15.504 |
| EST52022 | 50 | 50 | 5 | 3.77 | EST52066 | 125 | 125 | 10 | 19.133 |
| EST52023 | 50 | 50 | 6 | 4.465 | EST52067 | 125 | 125 | 12 | 22.692 |
| EST52024 | 56 | 56 | 3 | 2.624 | EST52068 | 125 | 125 | 14 | 26.193 |
| EST52025 | 56 | 56 | 4 | 3.446 | EST52069 | 140 | 140 | 10 | 21.488 |
| EST52026 | 56 | 56 | 5 | 4.251 | EST52070 | 140 | 140 | 12 | 25.522 |
| EST52027 | 56 | 56 | 6 | 6.568 | EST52071 | 140 | 140 | 14 | 29.49 |
| EST52028 | 63 | 63 | 4 | 3.907 | EST52072 | 140 | 140 | 16 | 33.393 |
| EST52029 | 63 | 63 | 5 | 4.822 | EST52073 | 160 | 160 | 10 | 24.724 |
| EST52030 | 63 | 63 | 6 | 5.721 | EST52074 | 160 | 160 | 12 | 29.391 |
| EST52031 | 63 | 63 | 8 | 7.469 | EST52075 | 160 | 160 | 14 | 33.987 |
| EST52032 | 63 | 63 | 10 | 9.151 | EST52076 | 160 | 160 | 16 | 38.518 |
| EST52033 | 70 | 70 | 4 | 4.372 | EST52077 | 180 | 180 | 12 | 33.159 |
| EST52034 | 70 | 70 | 5 | 5.397 | EST52078 | 180 | 180 | 14 | 35.383 |
| EST52035 | 70 | 70 | 6 | 6.406 | EST52079 | 180 | 180 | 16 | 43.452 |
| EST52036 | 70 | 70 | 7 | 7.398 | EST52080 | 180 | 180 | 18 | 48.634 |
| EST52037 | 70 | 70 | 8 | 8.373 | EST52081 | 200 | 200 | 14 | 42.894 |
| EST52038 | 75 | 75 | 5 | 5.818 | EST52082 | 200 | 200 | 16 | 48.56 |
| EST52039 | 75 | 75 | 6 | 6.905 | EST52083 | 200 | 200 | 18 | 54.501 |
| EST52040 | 75 | 75 | 7 | 7.976 | EST52084 | 200 | 200 | 20 | 60.056 |
| EST52041 | 75 | 75 | 8 | 9.03 | EST52085 | 200 | 200 | 22 | 71.168 |
| EST52042 | 75 | 75 | 10 | 11.089 | Uzunligi=6 - 12 metr | ||||
| EST52043 | 80 | 80 | 5 | 6.211 | |||||
| EST52044 | 80 | 80 | 6 | 7.376 | |||||
ST52 teng bo'lmagan po'lat o'lchamlari:
| Element raqami. | Oyoq 1 (mm) | Oyoq 2 (mm) | Qalinligi (mm) | Og'irligi (kg/m) | Element raqami. | Oyoq 1 (mm) | Oyoq 2 (mm) | Qalinligi (mm) | Og'irligi (kg/m) |
|---|---|---|---|---|---|---|---|---|---|
| UEST52001 | 30 | 20 | 3 | 1.14 | UEST52045 | 100 | 50 | 6 | 6.98 |
| UEST52002 | 30 | 20 | 4 | 1.49 | UEST52046 | 100 | 50 | 8 | 9.16 |
| UEST52003 | 40 | 20 | 3 | 1.38 | UEST52047 | 100 | 50 | 10 | 11.3 |
| UEST52004 | 40 | 20 | 3 | 1.8 | UEST52048 | 100 | 65 | 7 | 8.96 |
| UEST52005 | 40 | 25 | 4 | 1.97 | UEST52049 | 100 | 65 | 8 | 10.2 |
| UEST52006 | 45 | 30 | 4 | 2.3 | UEST52050 | 100 | 65 | 9 | 11.3 |
| UEST52007 | 45 | 30 | 5 | 2.82 | UEST52051 | 100 | 65 | 10 | 12.5 |
| UEST52008 | 50 | 30 | 5 | 3.02 | UEST52052 | 100 | 75 | 7 | 9.52 |
| UEST52009 | 50 | 30 | 6 | 3.58 | UEST52053 | 100 | 75 | 8 | 10.8 |
| UEST52010 | 50 | 40 | 4 | 2.77 | UEST52054 | 100 | 75 | 9 | 12.1 |
| UEST52011 | 50 | 40 | 5 | 3.42 | UEST52055 | 100 | 75 | 10 | 13.3 |
| UEST52012 | 50 | 40 | 6 | 4.03 | UEST52056 | 100 | 75 | 11 | 14.6 |
| UEST52013 | 60 | 30 | 5 | 3.43 | UEST52057 | 100 | 75 | 12 | 15.8 |
| UEST52014 | 60 | 30 | 6 | 4.06 | UEST52058 | 120 | 80 | 8 | 12.4 |
| UEST52015 | 60 | 30 | 7 | 4.68 | UEST52059 | 120 | 80 | 10 | 15.3 |
| UEST52016 | 60 | 40 | 5 | 3.83 | UEST52060 | 120 | 80 | 12 | 18.2 |
| UEST52017 | 60 | 40 | 6 | 4.54 | UEST52061 | 130 | 65 | 8 | 12.1 |
| UEST52018 | 60 | 40 | 7 | 5.24 | UEST52062 | 130 | 65 | 10 | 14.9 |
| UEST52019 | 65 | 50 | 5 | 4.43 | UEST52063 | 130 | 65 | 12 | 17.7 |
| UEST52020 | 65 | 50 | 6 | 5.26 | UEST52064 | 130 | 75 | 8 | 12.7 |
| UEST52021 | 65 | 50 | 7 | 6.08 | UEST52065 | 130 | 75 | 10 | 15.7 |
| UEST52022 | 65 | 50 | 8 | 6.88 | UEST52066 | 130 | 75 | 12 | 18.6 |
| UEST52023 | 75 | 50 | 5 | 4.83 | UEST52067 | 130 | 90 | 10 | 17 |
| UEST52024 | 75 | 50 | 6 | 5.75 | UEST52068 | 130 | 90 | 12 | 20.1 |
| UEST52025 | 75 | 50 | 7 | 6.65 | UEST52069 | 150 | 75 | 9 | 15.7 |
| UEST52026 | 75 | 50 | 8 | 7.53 | UEST52070 | 150 | 75 | 10 | 17.4 |
| UEST52027 | 75 | 50 | 9 | 8.4 | UEST52071 | 150 | 75 | 11 | 18.9 |
| UEST52028 | 75 | 55 | 5 | 5.04 | UEST52072 | 150 | 75 | 12 | 20.6 |
| UEST52029 | 75 | 55 | 7 | 6.93 | UEST52073 | 150 | 90 | 10 | 18.6 |
| UEST52030 | 75 | 65 | 6 | 6.49 | UEST52074 | 150 | 90 | 12 | 22 |
| UEST52031 | 75 | 65 | 8 | 8.48 | UEST52075 | 150 | 90 | 15 | 27.1 |
| UEST52032 | 75 | 65 | 10 | 10.5 | UEST52076 | 150 | 100 | 10 | 19.3 |
| UEST52033 | 80 | 40 | 6 | 5.51 | UEST52077 | 150 | 100 | 12 | 23 |
| UEST52034 | 80 | 40 | 8 | 7.21 | UEST52078 | 150 | 100 | 14 | 26.6 |
| UEST52035 | 80 | 60 | 6 | 6.49 | UEST52079 | 160 | 80 | 10 | 18.5 |
| UEST52036 | 80 | 60 | 7 | 7.5 | UEST52080 | 160 | 80 | 12 | 22 |
| UEST52037 | 80 | 60 | 8 | 8.48 | UEST52081 | 160 | 80 | 14 | 25.4 |
| UEST52038 | 80 | 65 | 6 | 6.73 | UEST52082 | 200 | 100 | 10 | 23.4 |
| UEST52039 | 80 | 65 | 8 | 8.82 | UEST52083 | 200 | 100 | 12 | 27.8 |
| UEST52040 | 80 | 65 | 10 | 10.9 | UEST52084 | 200 | 100 | 15 | 34.4 |
| UEST52041 | 90 | 65 | 6 | 7.22 | UEST52085 | 250 | 90 | 10 | 26.6 |
| UEST52042 | 90 | 65 | 7 | 8.32 | Material: ST52 Uzunligi=6 - 12 metr | ||||
| UEST52043 | 90 | 65 | 8 | 9.44 | |||||
| UEST52044 | 90 | 65 | 10 | 11.7 | |||||
ST52 po'lat burchagi zamonaviy omborning muhim omillari sifatida.
